Back to Applications Industry Application

Medical & Healthcare Display Solutions

Medical & Healthcare Display Solutions

Key Benefits at a Glance

True flat seamless surface for infection control
Hospital disinfectants — compatibility confirmed in writing
Fanless passive cooling — silent, no moving parts
EMC data to support your IEC 60601-1-2 submission

Overview

Healthcare environments demand displays that combine hygienic design, reliable performance, and safety compliance. AplusLCD medical displays feature seamless edge-to-edge glass surfaces that eliminate crevices where pathogens could harbor, supporting strict infection control protocols. Our fanless, passively cooled designs eliminate moving parts for silent, reliable 24/7 operation in patient care areas, operating rooms, and clinical workstations. Built for the demands of modern clinical environments, our medical displays pair hygienic surfaces and silent operation with the documentation your regulatory team needs.

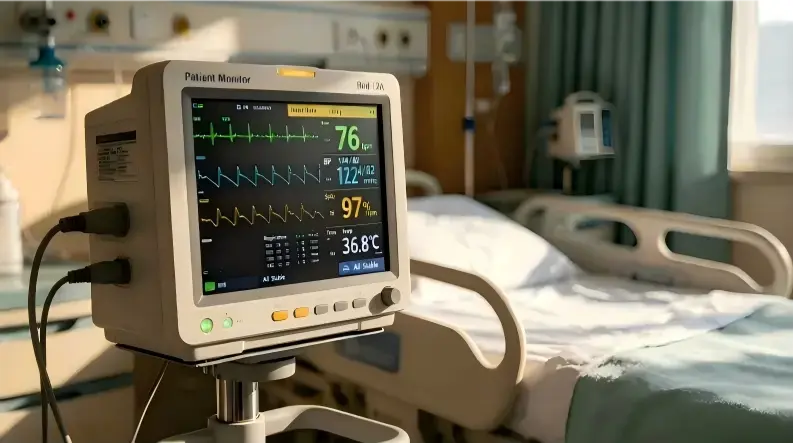

Medical & Healthcare industrial display solution — medical & healthcare display solutions

Common Medical & Healthcare Display Problems — and How We Specify Around Them

Disinfectant wipes destroy the screen, and bezel crevices harbour pathogens between cleanings

What we specify: Specify a true flat, edge-to-edge glass surface with no bezel crevices, seams or exposed screws, and confirm chemical compatibility in writing: alcohol-based solutions, quaternary ammonium compounds, hydrogen peroxide wipes and dilute bleach. Optional silver-ion coating is available where your cleaning protocol calls for it.

Fan noise disturbs patients and the fan circulates contaminants and dust

What we specify: Fanless passive cooling — no moving parts, no air intake, no filter to clean or replace. It also removes the mechanical failure point that takes a clinical workstation out of service.

The display sits next to diagnostic equipment and must not cause interference

What we specify: We pass on our emissions and immunity test data — radiated and conducted emissions, ESD immunity and radiated immunity — as input to your IEC 60601-1-2 evaluation. Ask any supplier for these in writing; missing EMC data is a common reason device submissions stall.

The finished device needs full IEC 60601-1 certification, not just a compliant display

What we specify: Full IEC 60601-1 is obtained on a project basis because it tests the complete system — display, mounting and power supply together. We supply the documentation and engineering support your certification process needs rather than claiming a certificate a component cannot hold.

Carts and wall stations get cleaned between every patient and have limited depth

What we specify: IP65 sealed front with a true flat surface that can be wiped down repeatedly, in 8" to 24" sizes, with VESA or custom brackets to fit the cart, arm or wall recess you already use.

Hygienic Design & Easy Cleaning

Infection control is paramount in healthcare settings. Our medical displays feature true flat, edge-to-edge glass surfaces with no bezel crevices, seams, or exposed screws where bacteria, viruses, and bodily fluids could accumulate. The seamless surface supports cleaning with standard hospital-grade disinfectants including alcohol-based solutions, quaternary ammonium compounds, and hydrogen peroxide wipes. Optional silver-ion coatings are available for the display surface; they supplement a cleaning protocol rather than replace one.

Fanless & Silent Operation

Noise in clinical environments can disrupt patient rest, interfere with auscultation during examinations, and contribute to caregiver fatigue. Our medical displays use passive cooling through optimized thermal management, eliminating cooling fans that generate noise, circulate airborne contaminants, and represent a mechanical failure point. The fanless design also means no air intake filters to clean or replace, reducing maintenance requirements in busy clinical settings.

EMC & Safety Compliance

Medical displays must not interfere with sensitive diagnostic and therapeutic equipment. Our displays carry CE and FCC certification, and we supply the emissions and immunity test data your engineering team needs as input to the IEC 60601-1-2 evaluation of your finished device. Because IEC 60601-1-2 applies to the complete medical system, conformance is established at device level with the display, mounting and power supply tested together. We support that process with documentation rather than claiming a certificate a component cannot hold.

How to Choose a Medical-Grade Display: DICOM, Luminance & Calibration

Diagnostic review, chart review and device integration place different demands on the same panel. For imaging and PACS review, specify DICOM Part 14 grayscale calibration, luminance uniformity and factory calibration documentation — that is what keeps one radiograph reading the same on two screens. For general clinical use and integration into a host device, brightness matched to the room (300-1000 nits depending on the use case), backlight stability over a long duty cycle and consistent colour matter more than diagnostic grayscale. Decide which of the two your application is before you request a quote, because the calibration and documentation packages differ.

Medical LCD display guide — DICOM, luminance and calibration explained

Selection Parameters — What to Specify for Medical & Healthcare

Parameter Specification
Screen Size 8" to 24" 8"-15.6" for carts and bedside terminals; 19"-24" for nurse stations and diagnostic review read at desk distance.
Surface Design True flat edge-to-edge glass (no crevices) The infection-control requirement — a raised bezel or exposed screw gives pathogens somewhere to survive the wipe-down.
Ingress Protection IP65 sealed front Needed wherever the display is wiped frequently or may be splashed; the rear rating depends on how it is mounted.
Cooling Fanless passive cooling (silent) Specify fanless in patient areas: no noise, no air circulation across the sterile field, no filter to service.
Disinfectant Compatibility Confirmed against your disinfectant list Send the exact agents your hospital uses — typically alcohol-based solutions, quaternary ammonium compounds, H₂O₂ or dilute bleach — and get compatibility in writing rather than a generic "cleanable" claim.
Anti-Bacterial Option Silver-ion coating available An adjunct to your cleaning protocol, never a substitute for it. Ask for the test method and the basis for any claim in writing.
EMC Compliance CE / FCC certified (ITE) We pass on the emissions and immunity test data to support your IEC 60601-1-2 evaluation. Conformance is established at device level — display, mounting and power supply tested together.

Applications

Medical Workstation & Nurse Station Displays
Patient Monitoring Systems
Clinical Information Systems (CIS)
Operating Room Information Displays
Diagnostic Imaging Workstations
Telemedicine & Remote Consultation Stations

Frequently Asked Questions

Can your medical displays be cleaned with standard hospital disinfectants?

Yes — against the specific agents in use at your site. Send us your disinfectant list and we confirm glass surface and touch compatibility in writing before you order. The agents we are most often asked to check are alcohol-based solutions (70% isopropyl, ethanol), quaternary ammonium compounds, dilute bleach (sodium hypochlorite) and hydrogen peroxide wipes.

Do you provide EMC test reports for medical device certification?

We supply the EMC test data we hold — radiated and conducted emissions plus ESD and radiated immunity results from our CE and FCC (ITE) certification testing — along with the technical documentation pack for your regulatory file. IEC 60601-1-2 conformance is established on the finished device rather than on the display alone, so your own testing covers display, mounting and power supply together. Our engineers can advise on integration-level EMC setup before you commit to it.

Can your medical displays be used in operating room environments?

Our true flat IP65 displays are suitable for operating room information display applications where they are not in direct contact with the sterile field. The fanless, sealed design prevents air circulation that could disrupt laminar airflow systems, and the seamless glass surface supports rigorous cleaning protocols between procedures.

Are your displays certified to IEC 60601-1 for medical electrical equipment safety?

No — and no display manufacturer can hold one. IEC 60601-1 (general safety) and IEC 60601-1-2 (EMC) apply to the complete medical electrical system, so certification is obtained by the device manufacturer with the display, mounting and power supply tested together. What we provide is the input to that process: EMC test data from our CE and FCC certification, mechanical and thermal documentation, and integration guidance. We do not claim a certificate a component cannot hold.

Can we arrange clinical project evaluation before volume procurement?

Yes — there is no MOQ for standard products; MOQ 3 pcs for custom products. Medical customers normally evaluate a project batch in a real ward or clinic and run it through the actual cleaning protocol before specifying it for a wider rollout. Send the disinfectants in use and we will confirm surface compatibility with that list.

Can the display be mounted on our existing medical cart or arm?

Yes. Send the cart or arm mounting pattern, the available depth behind the panel and the size you need, and we will confirm the VESA or custom bracket arrangement. Fanless construction keeps the unit silent and service-free at the point of care.

Ready to Discuss Your Medical & Healthcare Project?

Our application engineers will help you select the optimal medical & healthcare display configuration for your specific requirements and environment.

Get a Custom Medical Display Quote
