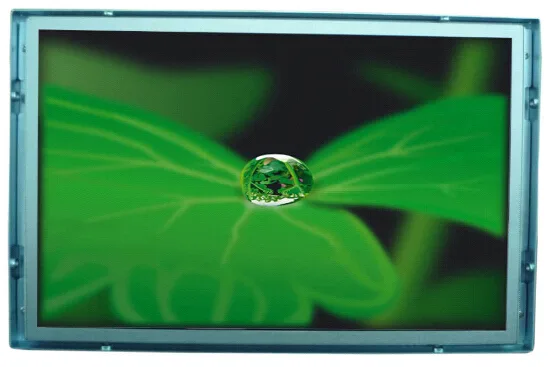

"LD" Series Open Frame Monitor
Product Overview
LD series keeps the LH mechanical platform but adds an optional PCAP touch overlay, IPS/VA wide-viewing-angle panels, and long-lifecycle component sourcing. Measured brightness spans 250–800 NITS across 6.5" to 19" — specified for interactive kiosks, transit terminals, and marine consoles where touch, off-axis readability and service life matter more than peak luminance.
Technical Specifications
| Size Range | 6.5" ~ 19" |
| Resolution | 640×480 ~ 1280×1024 |
| Brightness | 250~800 NITS |
| Contrast | 600:1 ~ 1200:1 |
Key Selling Points
Measured Brightness
250 to 800 NITS measured across the family — matched to indoor through semi-outdoor ambient light
Premium Panels
AUO, CHIMEI, LG, Sharp industrial-grade LCD panels
Wide Viewing Angle
IPS/VA panel options for superior off-axis visibility
24/7 Operation
Continuous 24/7/365 operation for demanding environments
Optional PCAP Touch
PCAP touch overlay available for interactive applications
Application Industries
Long-lifecycle sourcing and wide off-axis viewing for transit information displays
Optional PCAP touch overlay for interactive self-service kiosk enclosures
IPS/VA wide viewing angle for shipboard navigation and bridge consoles
Reliable open-frame module for ATM and financial terminal integration
Vivid display for retail advertising and promotional kiosks
Competitive Advantages
Touch-Ready, No Re-Engineering
Optional PCAP overlay and IPS/VA panels in the same chassis as the LH series — interactive variants ship without a new mechanical design.
Multi-Brand Panel Sourcing
9+ panel manufacturers ensure supply chain stability and competitive pricing.
Long Product Lifecycle
Industrial grade components with extended availability for long-term projects.
Certifications & Compliance
Available Models
8 models available
Available Sizes
Select a size for detailed specifications, applications, and quote
Model Selection Guide
Which model fits your project? Use the table below to identify the best match.
| Model | Size | Recommended For | Typical Scenario |
|---|---|---|---|
AP-06OPLD/6.5" | 6.5" | Extreme-temperature outdoor terminals, cold-chain logistics devices and unheated enclosure instrumentation | 640×480 output at 800 NITS with a -30 to 80 °C span — the widest operating range in the family, for unheated outdoor cabinets |
AP-07OPLD/7" | 7" | Handheld terminals, compact outdoor data loggers and vehicle auxiliary displays | 1024×600 widescreen content at 500 NITS across a 154.214(W)×85.92(H) mm active area; -20 ~ 70 °C operation. Space-critical handheld or vehicle-mounted enclosures where 500 NITS and a 154.214×85.92 mm active area must fit a tight bezel |
AP-084OPLD/8.4" | 8.4" | Outdoor instrument panels, 4:3 equipment retrofit screens and semi-outdoor ticketing terminals | 800×600 4:3 content at 350 NITS in a 170.4×127.8 mm active area; -20 to 70 °C rating for kiosk and enclosure integration |
AP-104OPLDN1/10.4" | 10.4" | Outdoor kiosk sub-displays, marine navigation repeaters and fuel dispenser screens | 1024×768 4:3 content at 350 NITS across a 211.2(W)×158.4(H) mm active area; -20 ~ 70 °C operation. 300 NITS at 800×600 inside IP-rated enclosures; interactive kiosk sub-displays read at arm's length |
AP-12OPLDN1/12.1" | 12.1" | Outdoor HMI retrofits, marine and agricultural equipment consoles, transit information panels | 1024×768 4:3 layout at 350 NITS with 800:1 contrast; 245.76×184.32 mm active area for drop-in replacement of legacy 12.1" bays |
AP-15OPLD/15" | 15" | Interactive ticketing machines, EV charging station displays and self-checkout terminals | 1024×768 4:3 content at 350 NITS across a 304.128(W)×228.096(H) mm active area; -20 ~ 70 °C operation. 350 NITS at 1024×768 for public terminals; the optional PCAP overlay adds touch without a new chassis |
AP-17OPLD/17" | 17" | Transportation information displays, bus/train schedule boards and platform signage | 1280×1024 5:4 content at 250 NITS across a 337.92(W)×270.336(H) mm active area; 0 ~ 50 °C operation. Transit and platform schedules read at an angle; 250 NITS on a 1280×1024 5:4 panel for indoor concourses |
AP-19OPLD/19" | 19" | Drive-thru menu boards, outdoor advertising totems and marina information displays | 1280×1024 5:4 content at 250 NITS across a 374.784(W)×299.827(H) mm active area; 0 ~ 50 °C operation. Menu boards and lobby totems read at extended distance; 250 NITS 1280×1024 with 1000:1 contrast |
Our engineers provide free consultation to help you select the right model for your application.
Ask Our EngineerTechnical Resources & Support
Drawings, integration notes and documentation for kiosk and machine builds
Need the datasheet, mechanical drawings or 3D model? We issue project-specific datasheets, drawings and 3D models for your configuration — typically within 24–48 hours.
Engineering Support
Our engineers help you select the right display for your application — free consultation.
Contact EngineerFast Response
Production Info
Shipping & Returns
Global delivery: 7-30 days. Contact for shipping quote.
30-day return policy. Negotiable based on product condition.
Send Product Inquiry
Complete the form below — our engineering team will respond with detailed specifications and pricing.
Frequently Asked Questions
What is the main difference between LH and LD series?
Can LD series be used in direct sunlight?
Is PCAP touch available for LD series?
What power input does LD series require?
